ZyXEL PLA5256 Twin Pack

ZyXEL PLA5256 Twin Pack

2x 1000Mbps Powerline Past-Thru Gigabit Adapter, Directplug design, 128-bit AEC Protection, WPS button, QoS Media Streaming, 1Gbps LAN port, Twin pack

1000 Mbps Powerline Pass-Thru 2-Port Gigabit Ethernet Adapter
PN: PLA5256-EU0201F
1 517 Kč
1 835 Kč vč. DPH | Běžná cena: 2 019 Kč

Vložit do košíku

Na Vaše přání Vám zakoupené produkty rádi a ochotně nainstalujeme, nakonfigurujeme a samozřejmě Vás zaškolíme v jejich užívání a ovládání. Máte-li zájem o naše servisní služby, kontaktujte naše zákaznické centrum.

Podrobné info

Build Fast, Stable Home Networks with Gigabit Powerline Adapter

You have a wired network device in another room that needs Internet connection, but you don’t want the mess running a long Ethernet cable to it? Grab a ZyXEL PLA5256, 1000 Mbps Powerline Pass-Thru 2-Port Gigabit Ethernet Adapter. The PLA5256 utilizes the latest HomePlug AV2 technology that delivers wired speed of up to 1000 Mbps* through your power outlets — great for streaming HD video contents or playing intensive multiplayer online games. The PLA5256 features two Ethernet ports, making it perfect for connecting living room network devices such as set top boxes or video game consoles. With the convenient pass-through power outlet design, it doesn’t block the existing wall power outlets from other devices that require it.

Enhanced performance and range for smooth HD streaming and more

Build a wired with latest HomePlug AV2 up to 1000 Mbps* speed, with the ZyXEL PLA5256 to stream high-definition videos without hitches or stuttering. The flexibility provided by the two Gigabit Ethernet ports allows you to simultaneously connect to the Internet and stream media to a pair of devices like game consoles, PCs, smart TVs, NAS and printers.

Enhanced performance and range for smooth HD streaming and more


Convenient pass-through design that doesn’t block power outlets

The ZyXEL PLA5256 doesn’t block power outlets but offers a pass-through outlet instead, which allows you to keep the existing powered devices connected. The embedded noise filter eliminates static from connected electronics to further improve network quality.

Convenient pass-through design that doesn’t block power outlets

128-bit AES encryption for network protection

Keep snooping eyes at bay with the advanced end-to-end 128-bit AES encryption built into the ZyXEL PLA5256. It prevents users outside of your network from entering your personal local network.

128-bit AES encryption for network protection

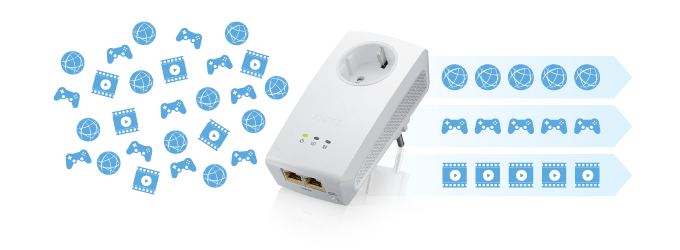

Quality-of-Service for unparalleled networking performance

The ZyXEL PLA5256 allocates proper bandwidth automatically for the powerline network to fully utilize your bandwidth. Get the unparalleled networking experience with extremely easy, straightforward setup.

Quality-of-Service for unparalleled networking performance

Oblast použití

Příklad zapojení PLA5256 Twin Pack


Technické parametry

System Specifications


  • Compliant with HomePlug AV2
  • IEEE 1901 and HomePlug AV standard

Powerline Data Rate

  • Transmit: up to 1000 Mbps*
  • Receive: up to 1000 Mbps*

Access Methods

  • CSMA/CA channel-access schemes

HomePlug Modulation

  • OFDM symbol modulation
  • QAM 4096/1024/256/64/16
  • QPSK, BPSK, ROBO carrier modulation schemes


  • Max. range up to 300 meters over power line


  • 128-bit AES encryption

Quality of Service (QoS)

  • Supports up to 4-level type QoS

Frequency Band

  • 2 MHz to 86 MHz


  • IGMP v1/v2/v3

System Requirements

  • Operating system independent:
    • Ethernet: RJ-45
  • Utility software OS support:
    • Microsoft Windows XP/Vista/7/8

Hardware Specifications

  • Ethernet interface: Two 10/100/1000 Mbps RJ-45 connectors with auto MDI/MDIX support
  • LED indicators:
    • Power on/off
    • Powerline network quality:
    • - Green: Best
      - Amber: Better
      - Red: Good
    • Ethernet link/activity
  • Button:
    • Encrypt/Reset button
  • Power rating: 100 to 240 V AC, 50/60 Hz
  • Power consumption:
    • Full operation: 5.5 watt max.
  • Socket/Connector:
  • EU outlet
    (15 A Max. 250 V)
    Type F (CEE 7/4)/Type F (CEE 7/4) DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU

    CH outlet
    (10 A Max. 250 V)
    Type J (SEV 1011)/Type J (SEV 1011) CH

    UK outlet
    (13 A Max. 250 V)
    Type G (BS 1363)/Type G (BS 1363 1011) UK, CY, HK

    US outlet
    (15 A Max. 120 V)
    Type B (NEMA 5-15)/Type B (NEMA 5-15)/TW, US

Physical Specifications

  • Item dimensions (WxDxH): 125 x 65 x 42 mm (4.92" x 2.56" x 1.65")
  • Item weight: 215 g (0.46 lb.)
  • Packing dimensions (WxDxH): 215 x 141 x 94 mm (8.46" x 5.55" x 3.7")
  • Packing weight:
    • Single pack: 310 g (0.69 lb.)
    • Starter kit: 550 g (1.21 lb.)

Environmental Specifications

  • Operating Environment
    • Temperature: 0°C to 40°C (32°F to 104°F)
    • Humidity: 10% to 90% (Non-condensing)
  • Storage Environment
    • Temperature: -30°C to 70°C (-22°F to 158°F)
    • Humidity: 10% to 95% (Non-condensing)


  • Safety: CE-LVD, BSMI

Packing Contents

  • Powerline adapter
  • Ethernet cable
  • Quick start guide
  • Warranty card
